LS921WU
6,000 ANSI Lumens WUXGA Short Throw Laser Installation Projector
OVERVIEW
The LS921WU is an advanced 6,000 ANSI Lumens WUXGA short throw installation projector. Adopting 2nd generation Laser Phosphor technology, the LS921WU offers high and consistent brightness with a lifespan of 20,000 hours and a screen size of up to 200". Short throw ratio, 1.1x optical zoom, wide lens shift, 360° projection, and portrait mode combine for incredible flexibility to create a truly immersive experience, especially ideal for blending projection applications in restaurants, gyms, and simulation/experience centers. Dual HDMI 2.0b / HDCP 2.2 ports ensure access to original 4K quality content with HDR/HLG formats supported. Add to that the compact size and built-in HDBaseT for the perfect mix of high-quality projection and cost-effectiveness.
Projection System: 0.48" WUXGA
Native Resolution: 1920x1200
Brightness: 6000 (ANSI Lumens)
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: Laser Phosphor system
Light Source Life (hours) with Normal Mode: 20000
Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
Lamp Watt: Nichia 74W x2
Lens: F=1.83-1.86, f=8.6-9.4mm
Projection Offset: 0%
Throw Ratio: 0.81-0.89
Optical Zoom: 1.1X
Digital Zoom: 0.8x-2.0x
Image Size: 60"-200"
Throw Distance: 1.04-3.83m
(100"@1.74m)
Keystone: H:+/-40° , V:+/-40°
Lens Shift V. Range: +50%, -50%
Lens Shift H. Range: +23%, -23%
Audible Noise (Normal): 36dB
Audible Noise (Eco): 29dB
Input Lag: 16ms
Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Video Compatibility: NTSC, PAL, SECAM
Horizontal Frequency: 15K-135KHz
Vertical Scan Rate: 23-120Hz

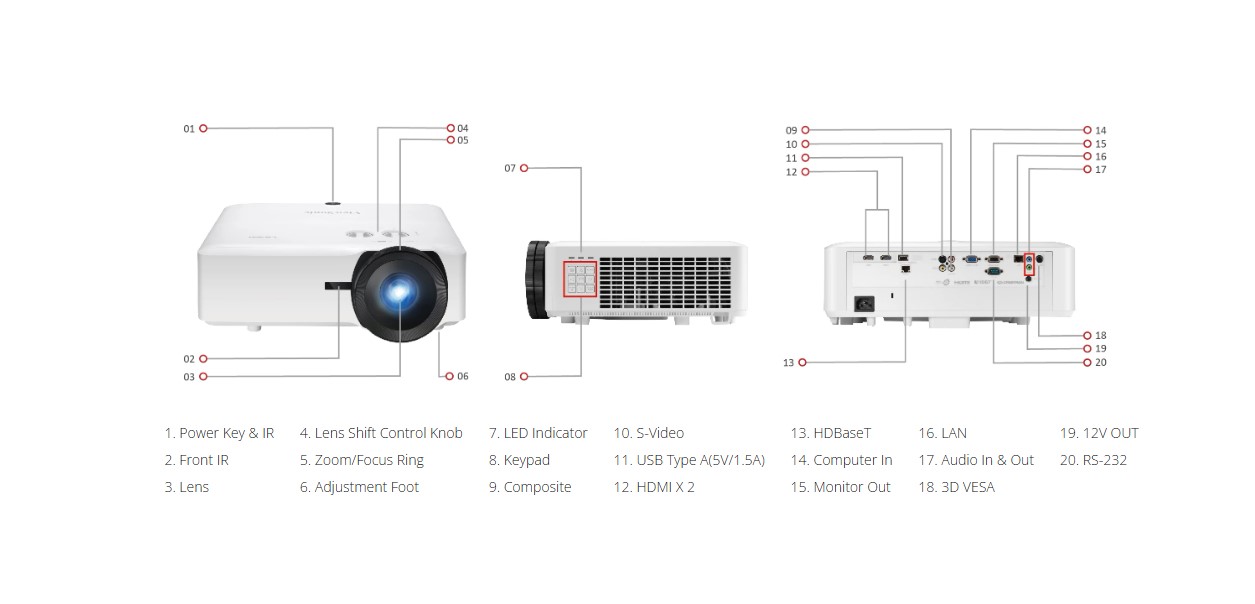

Computer in (share with component): 1
Composite: 1
S-Video: 1
HDMI: 2
(HDMI 2.0, HDCP 1.4/2.2)
Audio-in (3.5mm): 1
Audio-in (RCA R/L): 1
3D VESA (Sync): 1
HDBaseT: 1
Monitor out: 1
Audio-out (3.5mm): 1
Speaker: 10W x2
USB Type A (Power): 1 (5V/ 1.5A)
12V Trigger (3.5mm): 1
