LS920WU
6,000 ANSI Lumens WUXGA Laser Installation Projector
OVERVIEW
The LS920WU is an advanced 6,000 ANSI Lumens WUXGA installation projector. Adopting 2nd generation Laser Phosphor technology, the LS920WU offers high and consistent brightness with a lifespan of 20,000 hours and a screen size of up to 300". Wide lens shift, 1.6x optical zoom, 360° projection, and portrait mode combine for incredible flexibility that gives life to captivating creative installations, especially ideal for auditoriums, board rooms, commercial displays, restaurants, and sports bars. Dual HDMI 2.0b / HDCP 2.2 ports ensure access to original 4K quality content with HDR/HLG support. Add to that the compact size and the built-in HDBaseT for the perfect mix of high-quality projection and cost-effectiveness.
Projection System: 0.48" WUXGA
Native Resolution: 1920x1200
Brightness: 6000 (ANSI Lumens)
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: Laser Phosphor system
Light Source Life (hours) with Normal Mode: 20000
Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
Lamp Watt: Nichia 74W x2
Lens: F=1.81-2.1, f=14.3-22.9mm
Projection Offset: 0%
Throw Ratio: 1.36-2.18
Optical Zoom: 1.6X
Digital Zoom: 0.8x-2.0x
Image Size: 30"-300"
Throw Distance: 0.88-14.09m
(100"@2.93m)
Keystone: H:+/-40° , V:+/-40°
Lens Shift V. Range: +50%, -50%
Lens Shift H. Range: +23%, -23%
Audible Noise (Normal): 36dB
Audible Noise (Eco): 29dB
Input Lag: 16ms
Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Video Compatibility: NTSC, PAL, SECAM
Horizontal Frequency: 15K-135KHz
Vertical Scan Rate: 23-120Hz

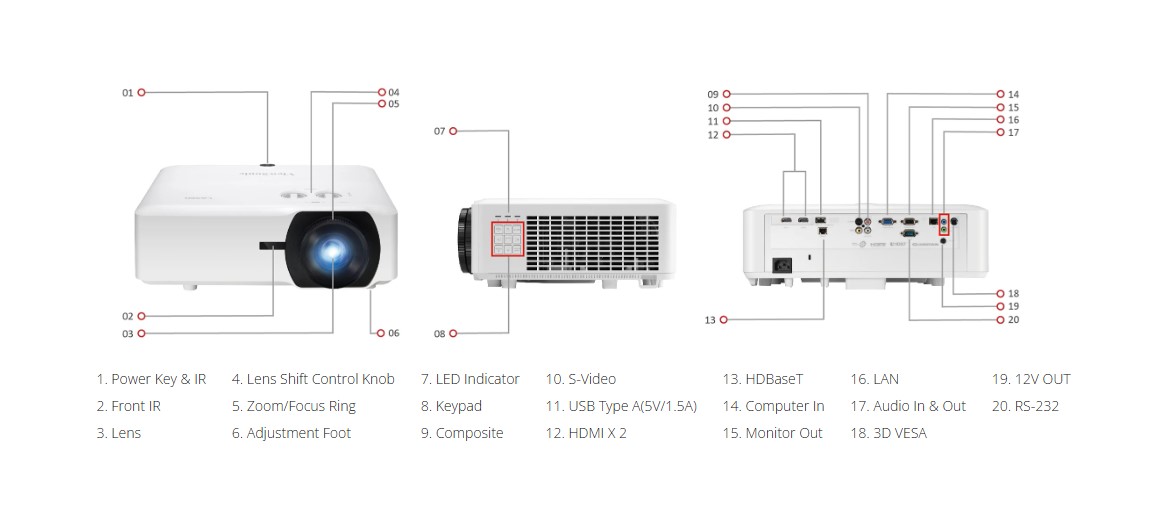

Computer in (share with component): 1
Composite: 1
S-Video: 1
HDMI: 2
(HDMI 2.0, HDCP 1.4/2.2)
Audio-in (3.5mm): 1
Audio-in (RCA R/L): 1
3D VESA (Sync): 1
HDBaseT: 1
Monitor out: 1
Audio-out (3.5mm): 1
Speaker: 10W x2
USB Type A (Power): 1 (5V/ 1.5A)
12V Trigger (3.5mm): 1
