Technical Spec :
Heatsink Specifications:

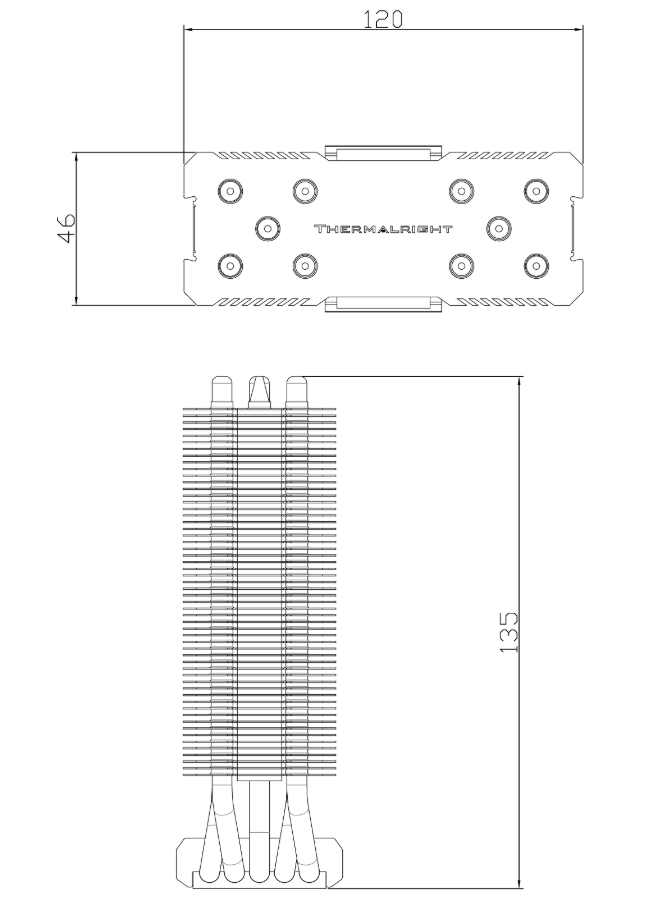

Dimension: L120 mm x W46 mm x H135 mm
Weight: 980g
Heat pipes: 6mm heatpipe x 5 units
Fin: T = 0.4 mm；Gap=1.6 mm
Copper Base: C1100 Pure copper nickel plated
TL-D12W-S FAN Spec：
Dimension: L120 mm x W120 mm x H25 mm
Rated Speed: 1500 RPM±10% (MAX)
Noise Level: 25.6 dBA
Air Flow: 64.87 CFM (MAX)
Air Pressure: 1.53mm H2O (MAX)
Ampere: 0.20 A
Connector: 4 Pin (PWM Fan connector)
ARGB Connector: 3 PIN 5V
Bearing Type : S-FDB Bearing
Technical Spec :
Heatsink Specifications:
Dimension: L120 mm x W46 mm x H135 mm
Weight: 980g
Heat pipes: 6mm heatpipe x 5 units
Fin: T = 0.4 mm；Gap=1.6 mm
Copper Base: C1100 Pure copper nickel plated
TL-D12W-S FAN Spec：
Dimension: L120 mm x W120 mm x H25 mm
Rated Speed: 1500 RPM±10% (MAX)
Noise Level: 25.6 dBA
Air Flow: 64.87 CFM (MAX)
Air Pressure: 1.53mm H2O (MAX)
Ampere: 0.20 A
Connector: 4 Pin (PWM Fan connector)
ARGB Connector: 3 PIN 5V
Bearing Type : S-FDB Bearing
