Technical Spec :
Heatsink Specifications:

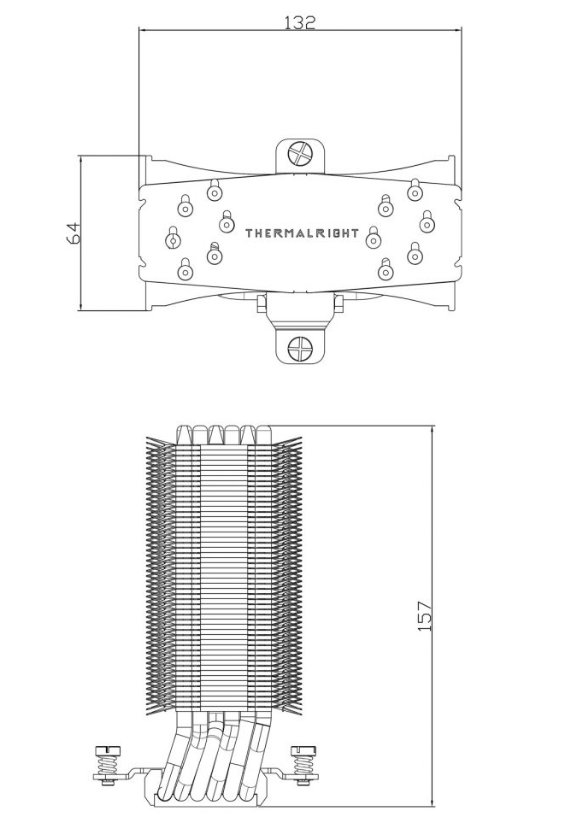

Dimension：L132 mm x W64 mm x H157 mm
Weight：660g
Heat pipes：6 mm heatpipe x 6 units
Fin：T = 0.4 mm；Gap=1.6 mm
Copper Base：C1100 Pure copper nickel plated
TL-B12 EXTREM FAN Spec：
Dimension：L120 mm x W120 mm x H25.6 mm
Weight：205g
Rated Speed：2150 RPM±10% (MAX)
Noise Level：28.1 dBA
Air Flow：69 CFM (MAX)
Air Pressure：2.87 mm H2O (MAX)
Ampere：0.16 A
Connector：4 Pin (PWM Fan connector)
Bearing Type : Two Ball Bearing
