Technical Spec :
Heatsink Specifications:

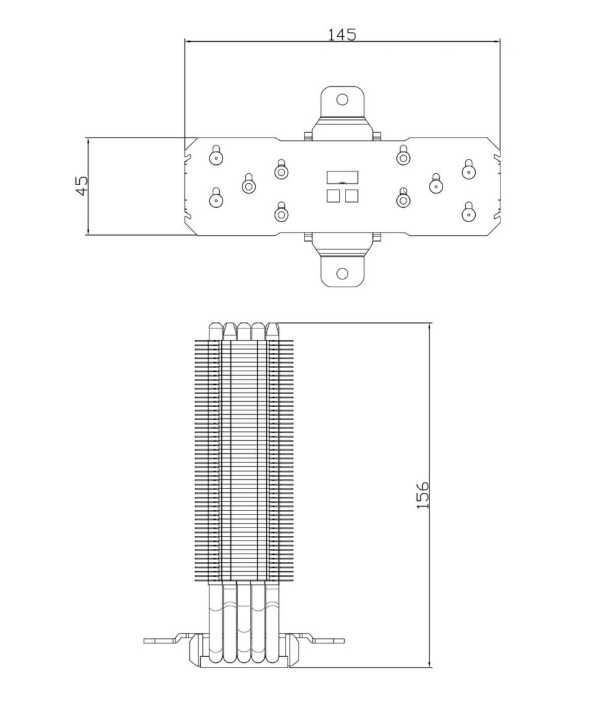

Dimension: L145 mm x W45 mm x H156 mm
Weight: 665g
Heat pipes: 6mm heatpipe x 5 units
Fin: T = 0.4 mm；Gap=1.6 mm
Copper Base: C1100 Pure copper nickel plated
TL-D14X-W FAN Spec：
Dimension：L140 mm x W152 mm x H27 mm
Weight：175g
Rated Speed：1800 RPM±10% (MAX)
Noise Level：30.2 dBA
Air Flow：95.5 CFM (MAX)
Air Pressure：2.25mm H2O (MAX)
Ampere：0.35 A
Connector：4 Pin (PWM Fan connector)
Bearing Type : S-FDB Bearing
