Technical Spec :
Heatsink Specifications:

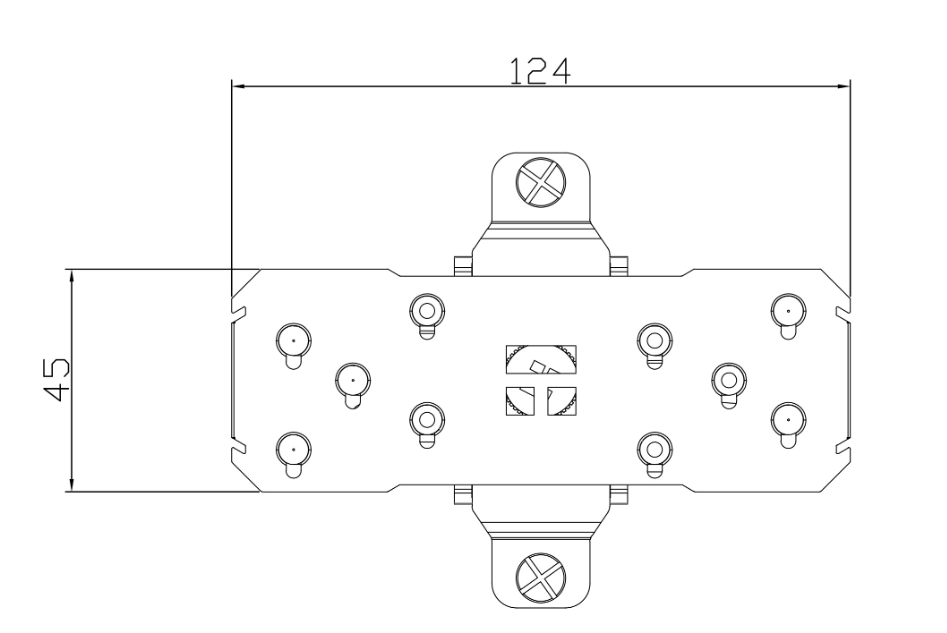

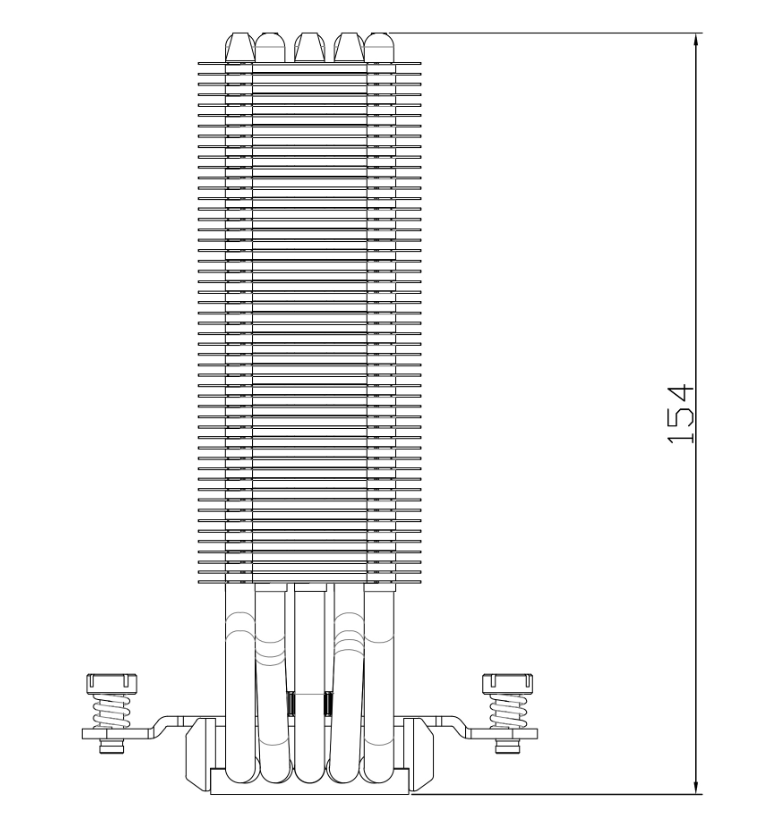

Dimension: L124 mm x W45 mm x H154 mm
Weight: 520g
Heat pipes: 6mm heatpipe x 5 units
Fin: T = 0.4 mm；Gap=1.6 mm
Copper Base: C1100 Pure copper nickel plated
TL-C12 PRO FAN Spec：
Dimension：L120 mm x W120 mm x H25 mm
Weight：160g
Rated Speed：1850 RPM±10% (MAX)
Noise Level：29.6 dBA
Air Flow：82 CFM (MAX)
Air Pressure：2.1mm H2O (MAX)
Ampere：0.25 A
Connector：4 Pin (PWM Fan connector)
Bearing Type : S-FDB Bearing
