Description
TL-M12W-S SPECIFICATION：

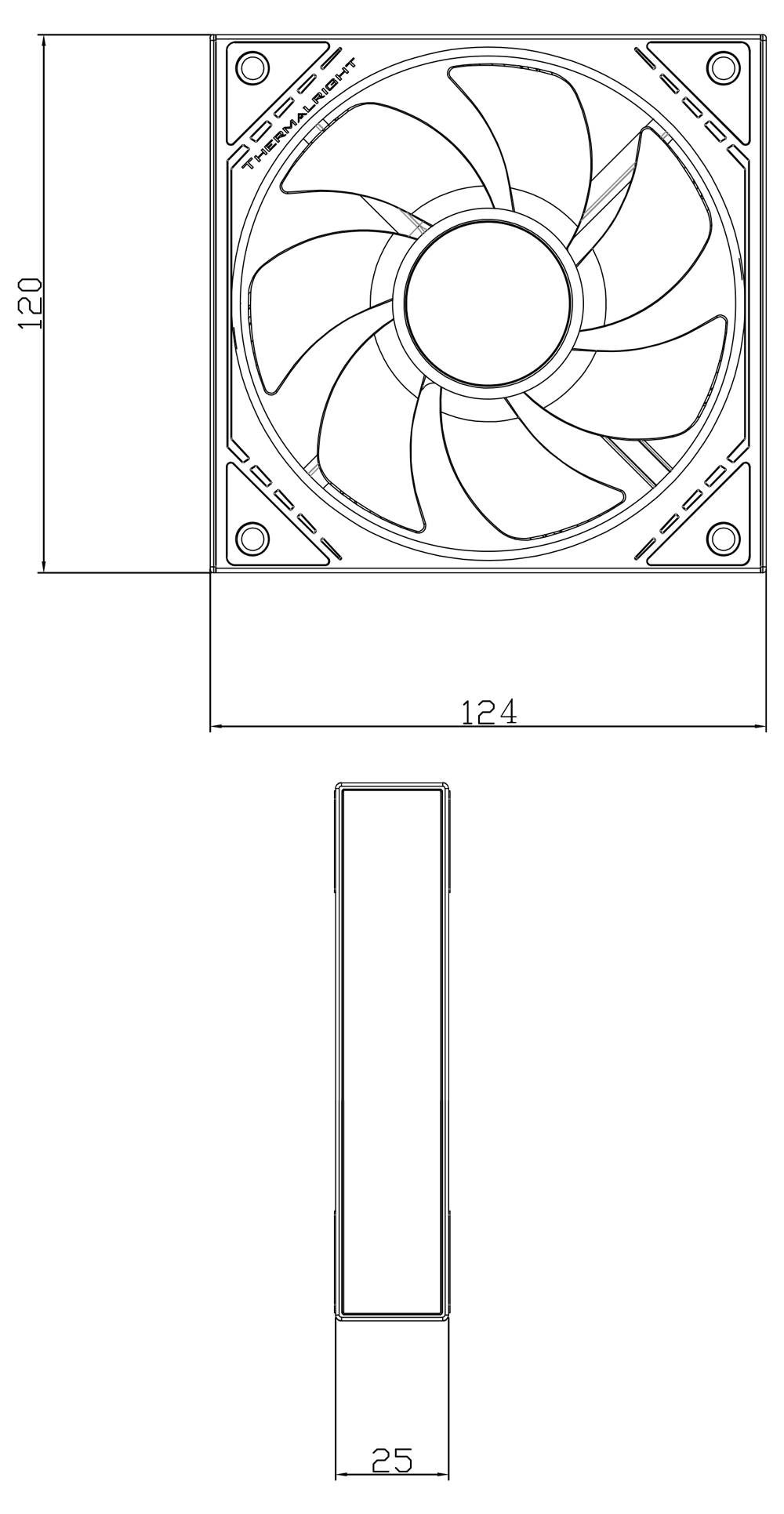

Dimension: L124 mm x W120 mm x H25 mm
Rated Speed: 1500 RPM±10% (MAX)
Noise Level: 23.2 dBA (MAX)
Air Flow: 47.6 CFM (MAX)
Air Pressure: 1.31 mm H2O (MAX)
Ampere: 0.15 A
Connector: 4 PIN PWM
ARGB Connector: 3 PIN 5V
Bearing Type: S-FDB Bearing
TL-M12R-S (REVERSE) SPECIFICATION：
Dimension: L124 mm x W120 mm x H25 mm
Rated Speed: 1500 RPM±10% (MAX)
Noise Level: 23.2 dBA (MAX)
Air Flow: 34.43 CFM (MAX)
Air Pressure: 1.31 mm H2O (MAX)
Ampere: 0.15 A
Connector: 4 PIN PWM
ARGB Connector: 3 PIN 5V
Bearing Type: S-FDB Bearing
Description
TL-M12W-S SPECIFICATION：
Dimension: L124 mm x W120 mm x H25 mm
Rated Speed: 1500 RPM±10% (MAX)
Noise Level: 23.2 dBA (MAX)
Air Flow: 47.6 CFM (MAX)
Air Pressure: 1.31 mm H2O (MAX)
Ampere: 0.15 A
Connector: 4 PIN PWM
ARGB Connector: 3 PIN 5V
Bearing Type: S-FDB Bearing
TL-M12R-S (REVERSE) SPECIFICATION：
Dimension: L124 mm x W120 mm x H25 mm
Rated Speed: 1500 RPM±10% (MAX)
Noise Level: 23.2 dBA (MAX)
Air Flow: 34.43 CFM (MAX)
Air Pressure: 1.31 mm H2O (MAX)
Ampere: 0.15 A
Connector: 4 PIN PWM
ARGB Connector: 3 PIN 5V
Bearing Type: S-FDB Bearing
