Technical Spec :
Heatsink Specifications:

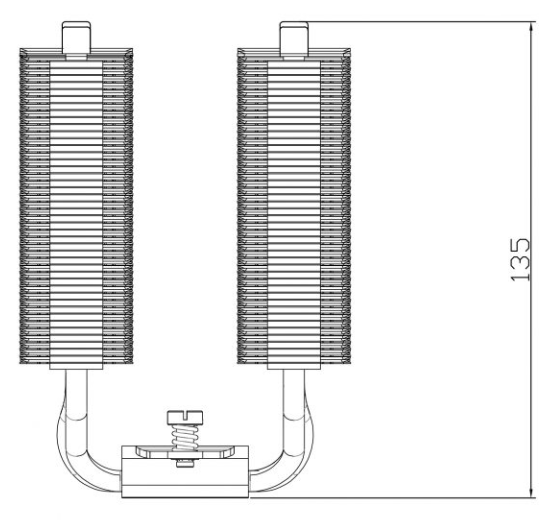

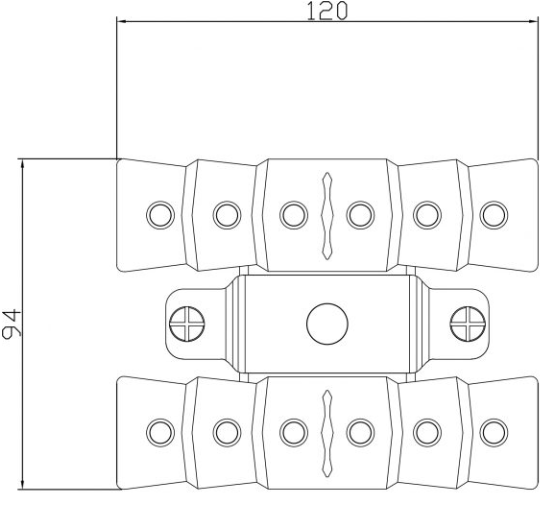

Dimension：L94 mm x W120 mm x H135 mm
Weight：580g
Heat pipes：6mm heatpipe x 6 units
Fin：T = 0.4 mm；Gap=1.6 mm
Copper Base：C1100 Pure copper nickel plated
TL-D12 PRO-G FAN Spec：
Dimension：L120 mm x W120 mm x H25 mm
Weight：160g
Rated Speed：1850 RPM±10% (MAX)
Noise Level：29.6 dBA
Air Flow：82 CFM (MAX)
Air Pressure：2.1 mm H2O (MAX)
Ampere：0.25 A
Connector：4 Pin (PWM Fan connector)
Bearing Type : S-FDB Bearing
