Technical Spec :
Heatsink Specifications:

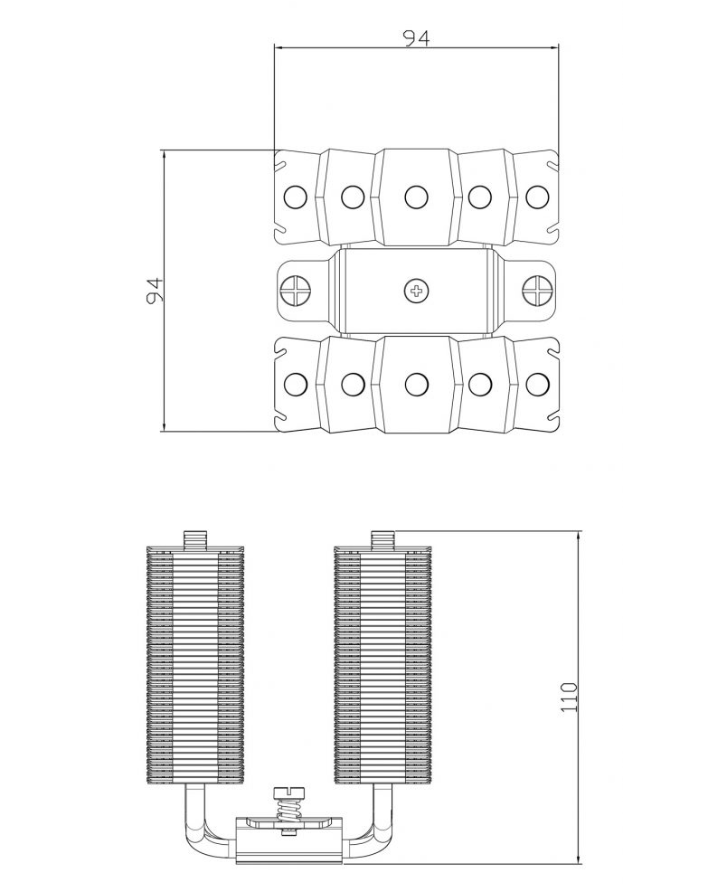

Dimension：L94 mm x W94 mm x H110 mm
Weight：400g
Heat pipes：6mm heatpipe x 5 units
Fin：T = 0.4 mm；Gap=1.6 mm
Copper Base：C1100 Pure copper nickel plated
TL-B9W FAN Spec：
Dimension：L92 mm x W92 mm x H25.6 mm
Weight：105g
Rated Speed：2500 RPM±10% (MAX)
Noise Level：23 dBA
Air Flow：54 CFM (MAX)
Air Pressure：2.24 mm H2O (MAX)
Ampere：0.13 A
Connector：4 Pin (PWM Fan connector)
Bearing Type : S-FDB Bearing
Technical Spec :
Heatsink Specifications:
Dimension：L94 mm x W94 mm x H110 mm
Weight：400g
Heat pipes：6mm heatpipe x 5 units
Fin：T = 0.4 mm；Gap=1.6 mm
Copper Base：C1100 Pure copper nickel plated
TL-B9W FAN Spec：
Dimension：L92 mm x W92 mm x H25.6 mm
Weight：105g
Rated Speed：2500 RPM±10% (MAX)
Noise Level：23 dBA
Air Flow：54 CFM (MAX)
Air Pressure：2.24 mm H2O (MAX)
Ampere：0.13 A
Connector：4 Pin (PWM Fan connector)
Bearing Type : S-FDB Bearing
