Technical Spec :
Heatsink Specifications:

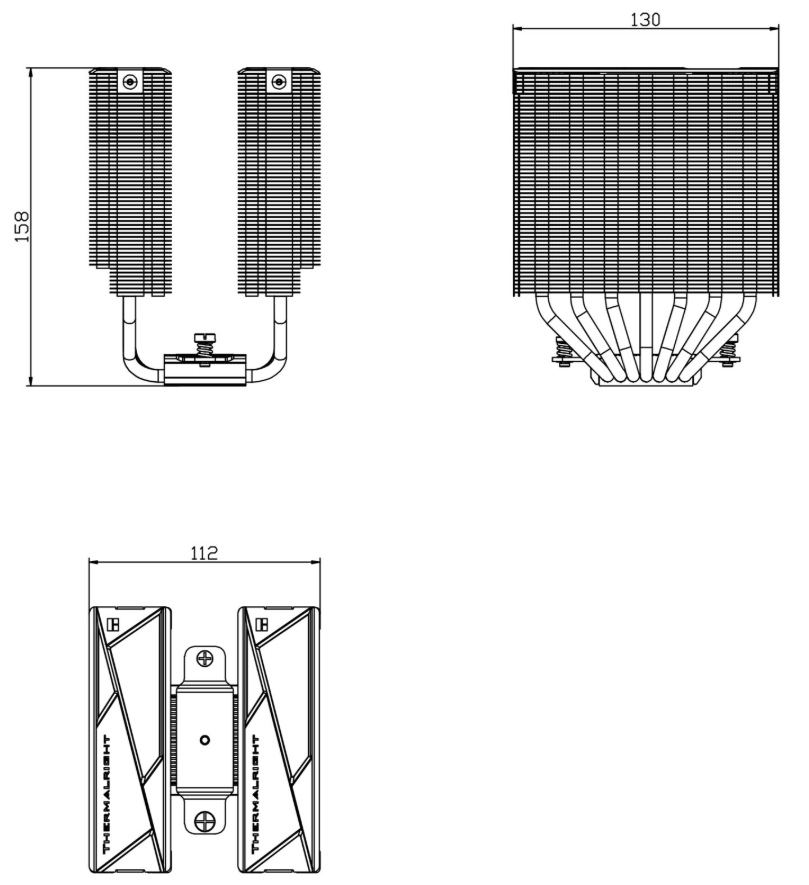

Dimension：L130 mm x W112 mm x H158 mm
Heat pipes：6 mm heatpipe x 7 units
Copper Base：C1100 Pure copper nickel plated
Warranty：6 Years
TL-K12W FAN Spec：
Dimension：L120 mm x W120 mm x H25 mm
Rated Speed：2150 RPM±10% (MAX)
Noise Level：27 dBA
Air Flow：69 CFM (MAX)
Air Pressure：2.87 mm H2O (MAX)
Connector：4 Pin (PWM Fan connector)
ARGB Connector：3 PIN 5V
Bearing Type : S-FDB V2 Bearing
TL-HD13W-X28 FAN Spec：
Dimension：L130 mm x W130 mm x H28 mm
Rated Speed：1750 RPM±10% (MAX)
Noise Level：28.3 dBA
Air Flow：81.88 CFM (MAX)
Air Pressure：2.38 mm H2O (MAX)
Connector：4 Pin (PWM Fan connector)
Bearing Type : S-FDB V2 Bearing
