Technical Spec :
Heatsink Specifications:

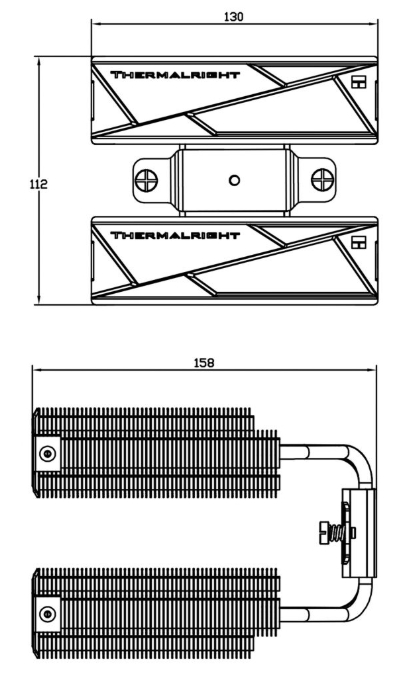

Dimension：L130 mm x W112 mm x H158 mm
Heat pipes：6mm heatpipe x 6 units
Copper Base：C1100 Pure copper nickel plated
TL-H12W-X28 FAN Spec：
Dimension：L120 mm x W120 mm x H28 mm
Rated Speed：2150 RPM±10% (MAX)
Noise Level：29.4 dBA
Air Flow：80.45 CFM (MAX)
Air Pressure：2.65 mm H2O (MAX)
Connector：4 Pin (PWM Fan connector)
Bearing Type : S-FDB V2 Bearing
TL-HD13W-X28 FAN Spec：
Dimension：L130 mm x W130 mm x H28 mm
Rated Speed：1750 RPM±10% (MAX)
Noise Level：28.3 dBA
Air Flow：81.88 CFM (MAX)
Air Pressure：2.38 mm H2O (MAX)
Connector：4 Pin (PWM Fan connector)
Bearing Type : S-FDB V2 Bearing
