Description
Technical Spec :
Heatsink Specifications：

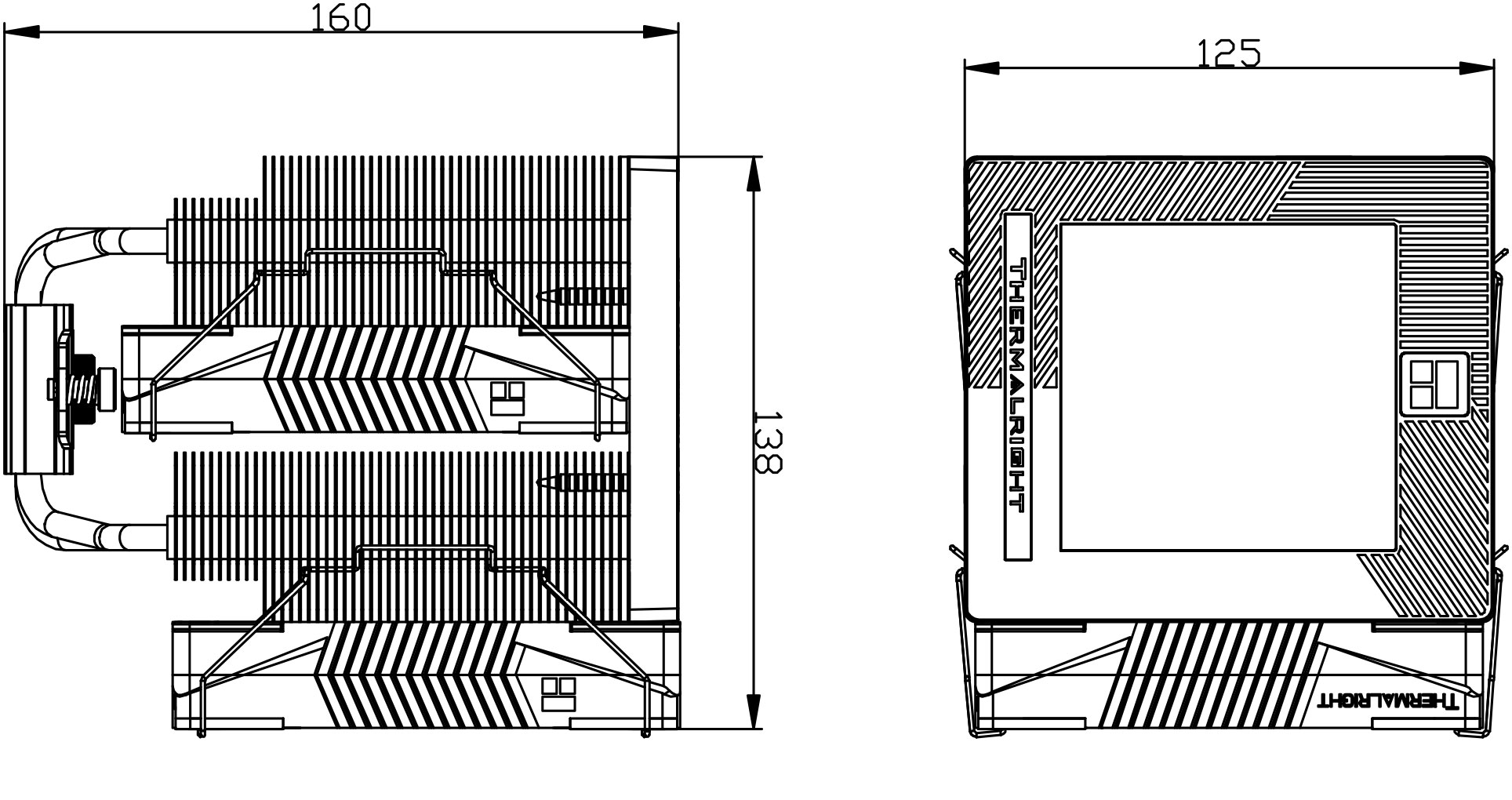

Dimension：L125 mm x W138 mm x H160 mm
Heat pipes：6 mm heatpipe x 7 units
Copper Base：C1100 Pure copper nickel plated
Screen Size：3.95-Inch
Screen Resolution：480×480
LCD DISPLAY Connector：MB 9 pin/USB 2.0 Port
TL-K12-X28-R9 FAN Spec：
Dimension：L120 mm x W120 mm x H28 mm
Rated Speed：2150 RPM±10% (MAX)
Noise Level：36 dBA
Air Flow：92 CFM (MAX)
Air Pressure：3.0 mm H2O (MAX)
Connector : 4 Pin (PWM Fan connector)
ARGB Connector：3 PIN 5V
Bearing Type : S-FDB V2 Bearing
