Heatsink Specifications

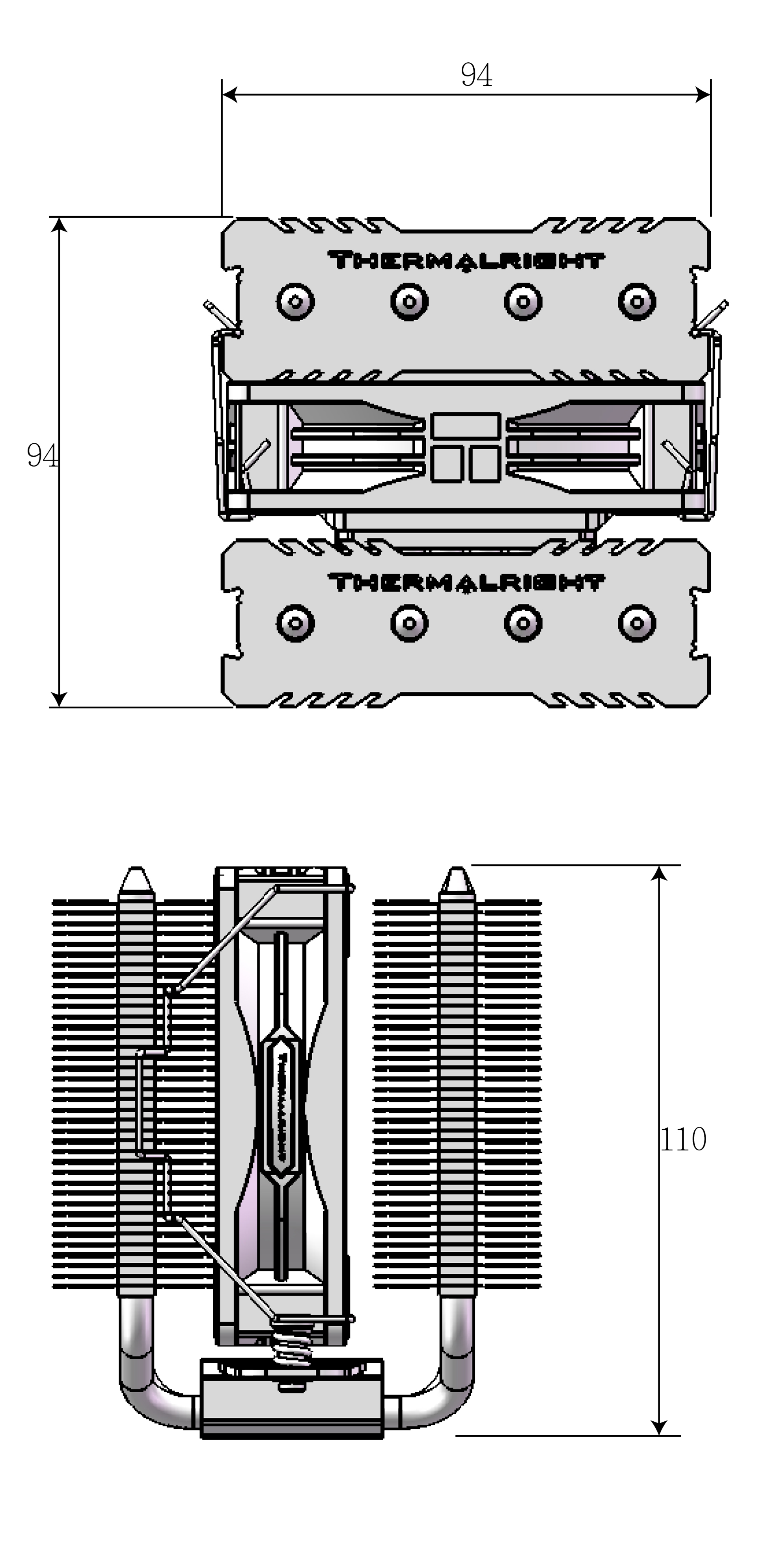

Dimension | L94 mm x W94 mm x H110 mm |
Heat pipes | 6 mm heatpipe x 4 units |
Copper Base | C1100 Pure copper nickel plated |
TL-P9 FAN Spec
Dimension | L92 mm x W92 mm x H25 mm |
Weight | 110g |
Rated Speed | 2200 RPM±10% (MAX) |
Noise Level | 23.85 dBA |
Air Flow | 32.77 CFM (MAX) |
Air Pressure | 1.98 mm H2O (MAX) |
Ampere | 0.10 A |
Connector | 4 Pin (PWM Fan connector) |
Bearing Type | S-FDB Bearing |
