Technical Spec :
Heatsink Specifications:

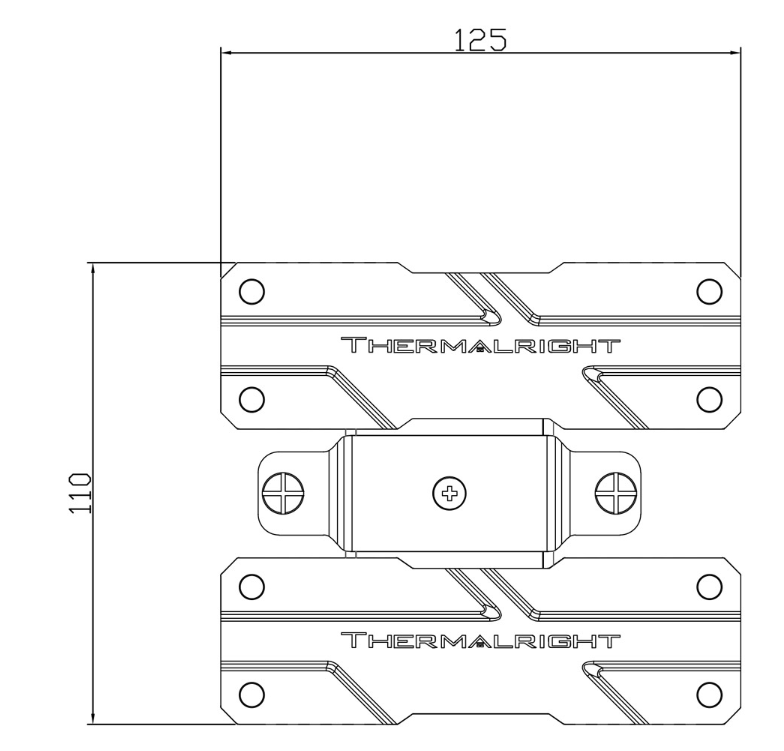

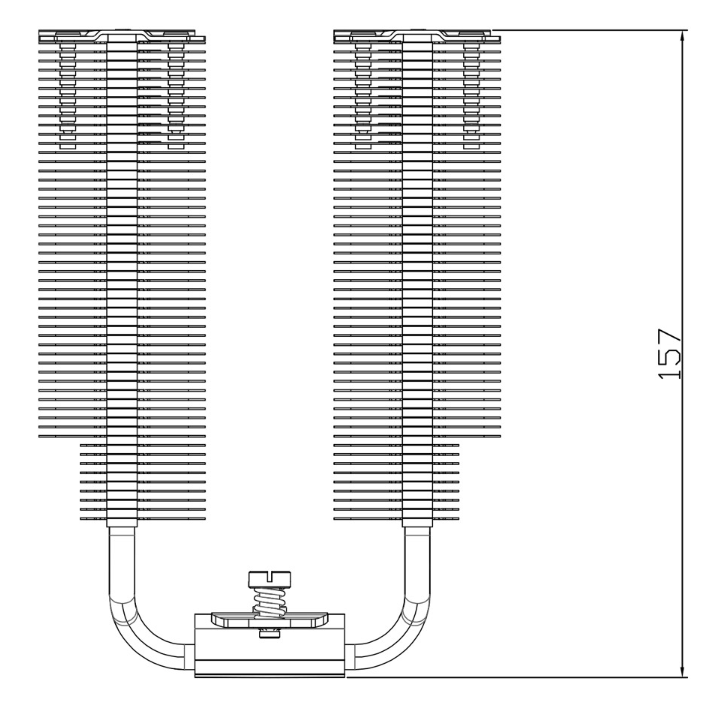

Dimension：L125 mm x W135 mm x H157 mm
Weight：750g
Heat pipes：6mm heatpipe x 6 units
Fin：T = 0.4 mm；Gap=1.8 mm
Copper Base：C1100 Pure copper nickel plated
TL-C12B FAN Spec：
Dimension：L120 mm x W120 mm x H25 mm
Weight：135g
Rated Speed：1550 RPM±10% (MAX)
Noise Level：25.6 dBA
Air Flow：66.17 CFM (MAX)
Air Pressure：1.53mm H2O (MAX)
Ampere：0.20 A
Connector：4 Pin (PWM Fan connector)
Bearing Type : S-FDB Bearing
