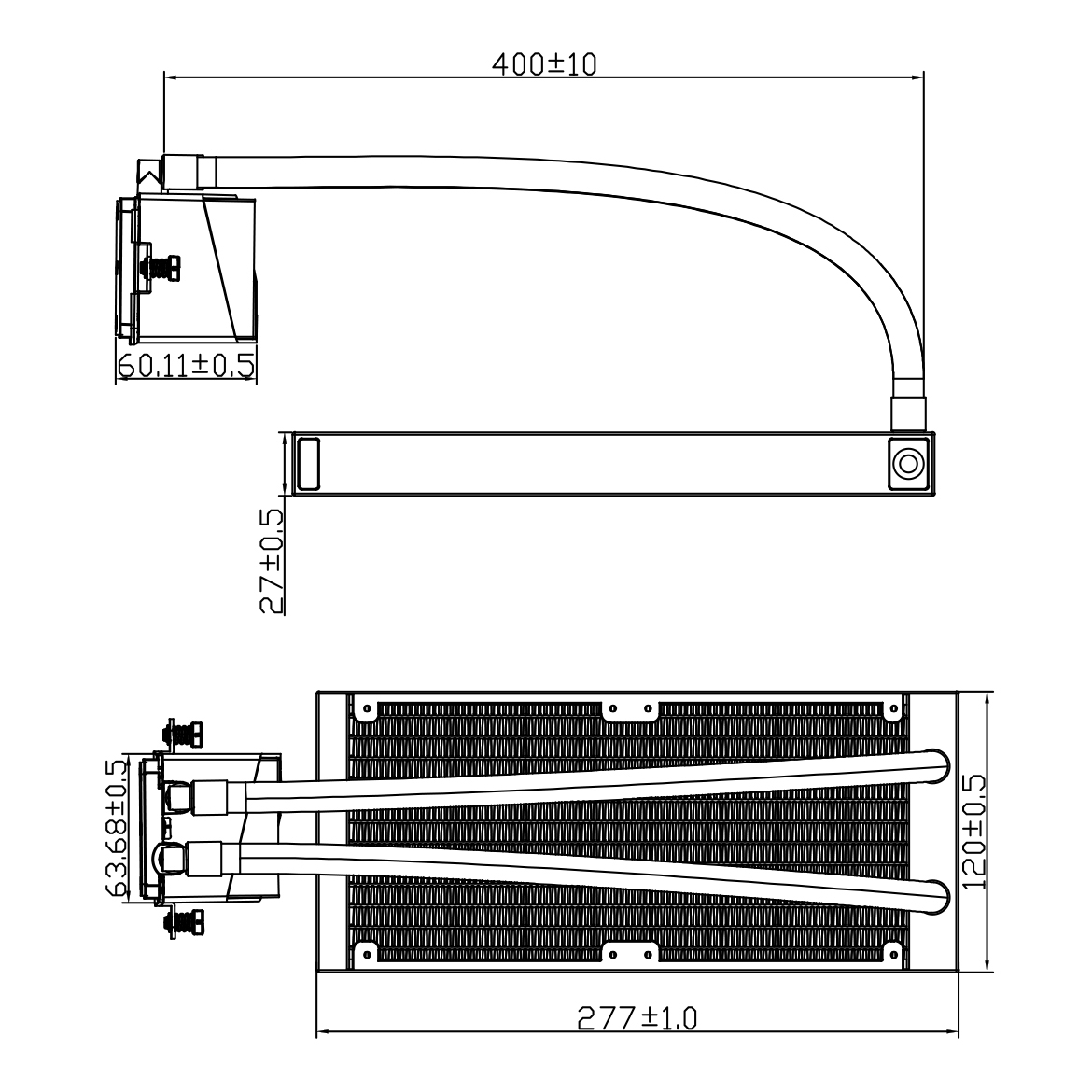

[Parameters of water-cooled radiator] Water-cooled radiator size is 277*120*52mm (including fan), cold header: 63*63*60mm, fan size: 124*120*25mm, speed: 2000RPM+10%, running noise ≤28.2DB(A), voltage: DC 12V, airflow: 68.9CFM, in the water pump and fan high speed With the high speed of water pump and fan, it can ensure the cooler cools the CPU well.
[Excellent Cooling Effect] Using Infinity Mirror style water-cooling header + 240 specification fully blackened nano-painted aluminium fins cooling row + polymer compiled protective water pipe + standard configuration 120mm Infinity Mirror fan, we are committed to creating an all-in-one cooler with low resistance, high cooling, and high face value.
[Infinity Mirror pump design] Pump for the new generation of pump system framework (Core V1.0), square shape of the pump, configure the exclusive Infinity Mirror LOGO light effects, outside the small triangle of frosted cut corners, unique to the design of the cooling, low vibration operation, pump power supply interface for the 4PIN PWM, the light interface for the 5V ARGB, can be accessed separately to the corresponding interface of the motherboard. The cooler is not only effective in dissipating heat, but also provides colourful interest.
[Optimisation of details] The pre-installed fan of the cold drain, and the included conduit pipe snap, concise installation and can better organise the pipe, the included Y-type adapter cable can avoid the situation of insufficient interface of the motherboard, the included SS2 snap specific system can be compatible with a wide range of CPU models.
[Wide range of compatibility] Support AMD:AM4/AM5,Intel: LGA1150/1151/1155/1156/1200/1700/1851, each platform comes with corresponding installation fasteners, simple installation steps, can be well installed to the corresponding CPU platform, it is recommended to install according to the installation video. If you have any questions, please contact our customer service.
Specification
Pump Dimensions | L63 mm x W63 mm x H60 mm |
Radiator Fimensions | L277 mm x W120 mm x H27 mm |
Pump Rated Voltage | 12V DC |
Connector | 4 PIN PWM |
ARGB Connector | 3 PIN 5V |
Radiator | Aluminum |
Warranty | 5 Years |
TL-M12 SPECIFICATION
Dimension | L124 mm x W120 mm x H25 mm |
Weight | 175 g |
Rated Speed | 2000 RPM±10% (MAX) |
Noise Level | 28.2 dBA (MAX) |
Air Flow | 68.9 CFM (MAX) |
Air Pressure | 2.21 mm H2O (MAX) |
Connector | 4 PIN PWM |
ARGB Connector | 3 PIN 5V |
Bearing Type | S-FDB Bearing |
