Technical Spec :
Heatsink Specifications:

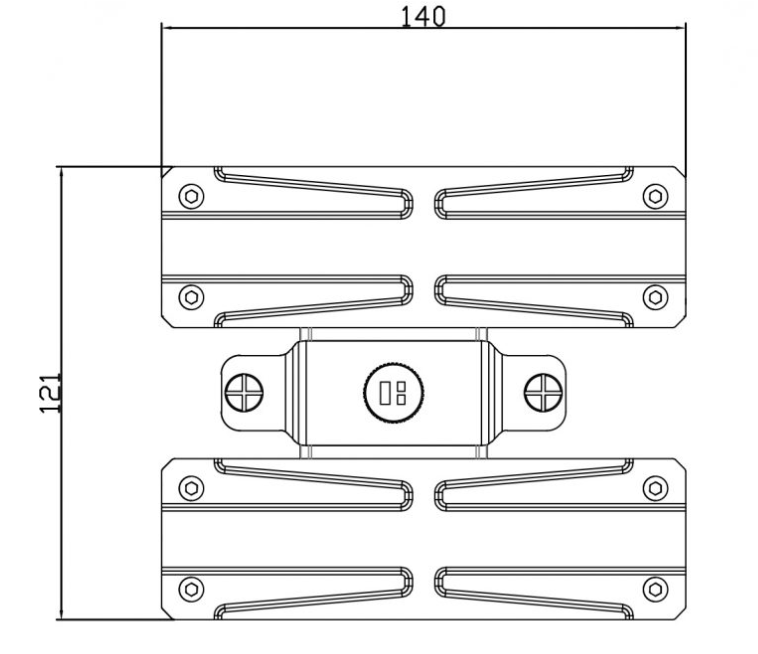

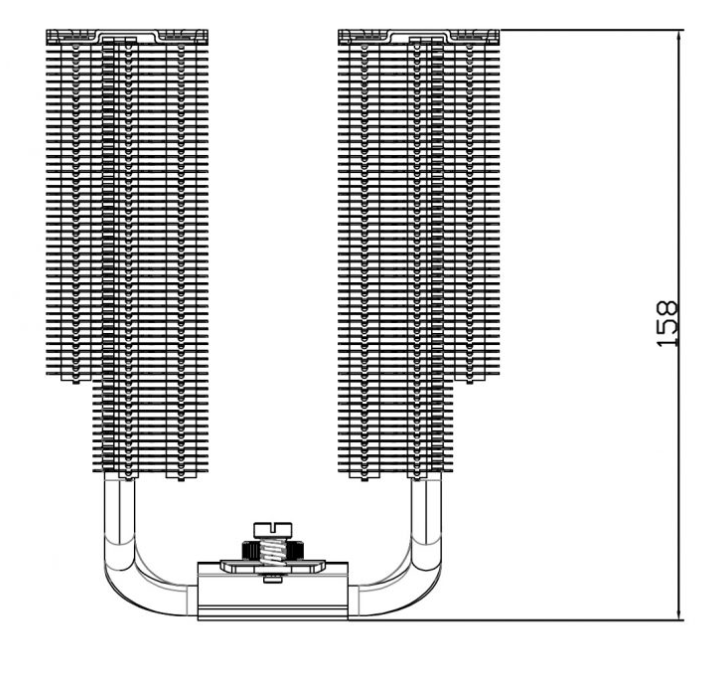

Dimension：L140 mm x W121 mm x H158 mm
Weight：1000g
Heat pipes：8mm heatpipe x 4 units
Fin：T = 0.4 mm；Gap=1.6 mm
Copper Base：C1100 Pure copper nickel plated
TL-C12W FAN Spec：
Dimension：L120 mm x W120 mm x H25 mm
Weight：135g
Rated Speed：1500 RPM±10% (MAX)
Noise Level：25.6 dBA
Air Flow：66.17 CFM (MAX)
Air Pressure：1.53mm H2O (MAX)
Ampere：0.20 A
Connector：4 Pin (PWM Fan connector)
Bearing Type : S-FDB Bearing
TL-D14W FAN Spec：
Dimension：L140 mm x W152 mm x H27 mm
Weight：145g
Rated Speed：1500 RPM±10% (MAX)
Noise Level：25.6 dBA
Air Flow：77.8 CFM (MAX)
Air Pressure：2.09 mm H2O (MAX)
Ampere：0.20 A
Connector：4 Pin (PWM Fan connector)
Bearing Type : S-FDB Bearing
