Support Back-Connect Motherboard: Supports ATX and Micro-ATX Back-Connect PROJECT ZERO motherboards, simplifying cable management for a clean, clutter-free, and aesthetically pleasing setup.
Upgrade Airflow Layout: This model supports up to 10 fans and 360 mm radiator on top and side. The lower chamber also surrounded by vents further enhance heat dissipation for optimal performance.
Rotatable GPU Bracket: One bracket, two orientations. A quick 90° rotation allows quick switching between horizontal and vertical GPU installations.
Dust Filter: Magnetic top and removable bottom dust filters enhance airflow while keeping your system clean, protecting internal components from dust buildup.
Pre-build with Reverse Blades Fan: Pre-installed reverse blade fans on the side allow the unobstructed display of the ARGB fan's beauty without interference.
2 x USB 5Gbps (Type-A) 1 x USB 20Gbps (Type-C) 1 x Audio-Out / Mic-in 1 x Reset Button 1 x Power Button
Drive Mount Support
Up to 3 x 2.5” SSD Up to 2 x 3.5” HDD (Maximum of 3 drives can be mounted at once, depending on configuration)
Expansion Slots
7
Maximum GPU Length
400 mm / 15.75 inches
Maximum CPU Cooler Height
165 mm / 6.50 inches
Power Supply Support
ATX
Maximum PSU Length
180 mm / 7.09 inches
Fan Size Support
Top: 3 x 120 mm / 2 x 140 mm Front: N/A Rear: 1 x 120 mm Side: 3 x 120 mm Bottom: 3 x 120 mm (Above the power shroud)
Pre-installed Fan Type
Rear: 1 x 120 mm ARGB Fan Side: 3 x 120 mm ARGB Fan (Reverse Blade Fan)
Radiator Size Support
Top: 120 / 140 / 240 / 280 / 360 mm Front: N/A Rear: 120 mm Side: 120 / 240 / 360 mm Bottom: N/A
Dimensions (DxWxH)
460 x 232 x 490 mm / 18.11 x 9.25 x 19.29 inches
Net Weight
Black: 8.37 kg / 18.45 lbs White: 8.37 kg / 18.45 lbs
Gross Weight
Black: 10 kg / 22.04 lbs White: 10 kg / 22.04 lbs

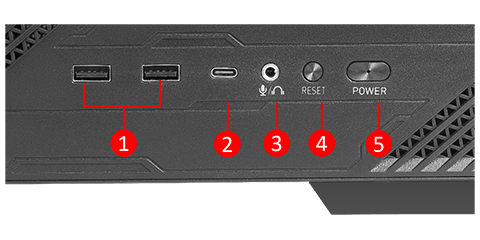

Connections
1. USB 5Gbps (Type-A) 2. USB 20Gbps (Type-C) 3. Audio-Out / Mic-in 4. Reset Button 5. Power Button
MAG PANO 130R PZ / WHITE
Support Back-Connect Motherboard: Supports ATX and Micro-ATX Back-Connect PROJECT ZERO motherboards, simplifying cable management for a clean, clutter-free, and aesthetically pleasing setup.
Upgrade Airflow Layout: This model supports up to 10 fans and 360 mm radiator on top and side. The lower chamber also surrounded by vents further enhance heat dissipation for optimal performance.
Rotatable GPU Bracket: One bracket, two orientations. A quick 90° rotation allows quick switching between horizontal and vertical GPU installations.
Dust Filter: Magnetic top and removable bottom dust filters enhance airflow while keeping your system clean, protecting internal components from dust buildup.
Pre-build with Reverse Blades Fan: Pre-installed reverse blade fans on the side allow the unobstructed display of the ARGB fan's beauty without interference.
