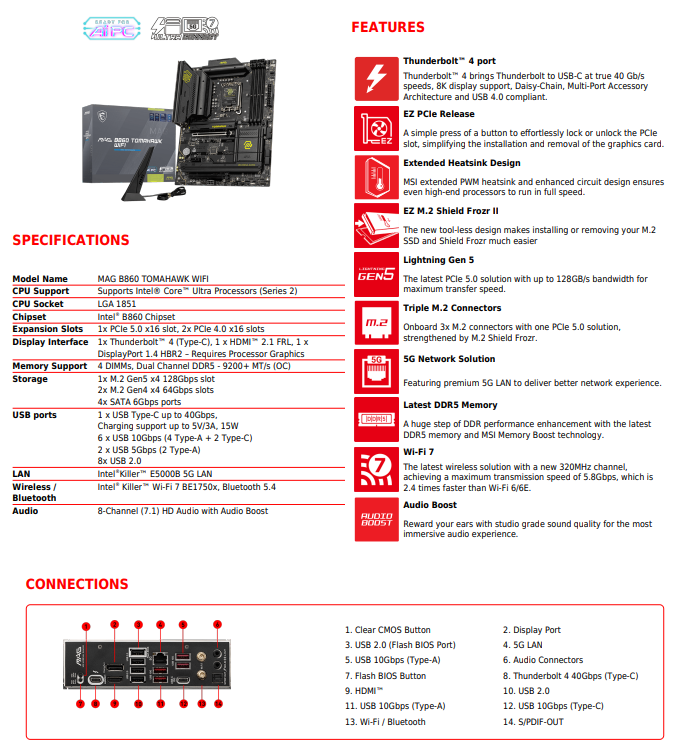

Ultra power – MAG B860 Tomahawk WiFi supports Intel Core Ultra processors (Series 2) (LGA 1851) and features MSI Core Boost technology for improved stability and performance
FROZR GUARD - Premium cooling features such as 7W/mK MOSFET thermal pads, additional choke thermal pads and an extended heat sink; with chipset heatsink, EZ M.2 Shield Frozr II and a combo header for pump & system fan (3A)
DDR5 MEMORY, PCIe 5.0 x16-SLOT - 4 x DDR5 DIMM slots with isolated Memory Boost circuit for overclocking (1DPC 1R, 9200+ MT/s); 1 x PCIe 5.0 x16 slot (128GB/s) supports graphics cards and includes Steel Armor II
Triple M.2 ports – the storage options include 1 x M.2 Gen5 x4 128Gbps slot, 2 x M.2 Gen4 x4 64Gbps slots; EZ M.2 Shield Frozr II to avoid thermal throttling and EZ M.2 Clip II
ULTRA CONNECT - The network hardware includes a full-speed Wi-Fi 7 module with Bluetooth 5.4 & Intel Killer 5G LAN; ports on the back include Thunderbolt 4 Type-C with display output and 7.1 HD audio with audio boost (supports S/PDIF output)
