CPU / Processor
NVIDIA GB10 Grace Blackwell Superchip
Blackwell Architecture GPU
20 core Arm, 10 Cortex-X925 + 10 Cortex-A725 CPU
16MB L2 Cache
Blackwell Generation CUDA Cores
5th Generation Tensor Cores
4th Generation RT Cores
1x NVEC
1x NVDEC
Memory
128GB LPDDR5x 273 GB/s, coherent unified system memory, 16 channels, soldered-down
Storage
4TB PCIe-4x4 2242 NVMe
Graphic Card
NVIDIA DGX SPARK GB10
Operation System
NVIDIA DGX™ OS 7 / Ubuntu 24.04
Network / Connectivity Technology
Realtek RTL8127-CG 10GbE Ethernet Controller
AzureWave AW-EM637
IEEE 802.11 a/b/g/n/ac/ax/be Wireless LAN 2T2R and
Bluetooth 5.4 Combo Module
Interface
Internal Slot M.2-M: 1 PCIe Gen5 x4
Rear I/O
1x USB Type-C (USB-C) power connector (240W)
3x USB 3.2 Type-C (USB-C) 20Gbps (total output power 30W)
1x HDMI 2.1a
1x RJ-45 (10GbE LAN)

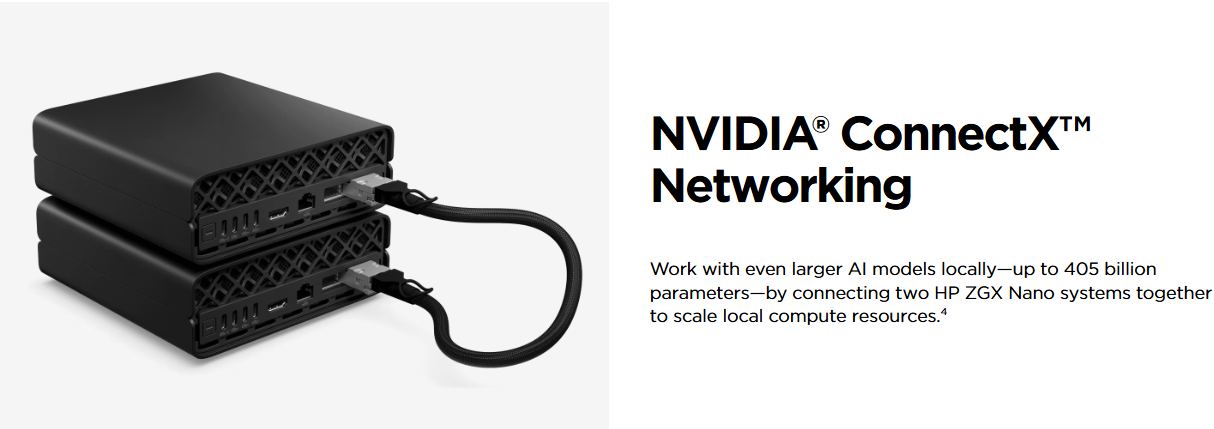

2x QSFP (200GbE LAN)
Battery / Power Supply
Power Adapter 240W external USB Type-C power adapter, 89% efficiency, active PFC

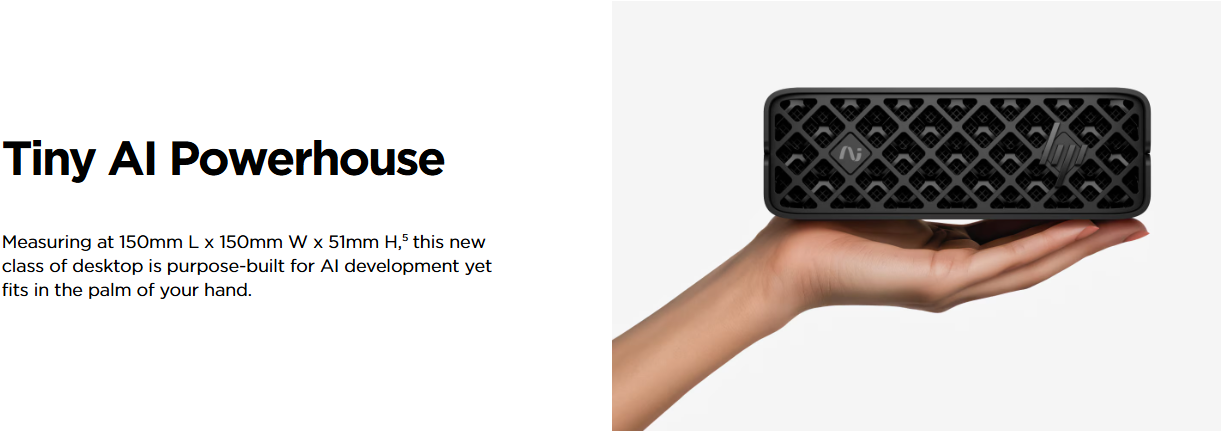

Dimensions
Chassis Dimensions (H x W x D)
H (without feet): 2.01” (5.1cm)
H (with feet): 2.1" (5.45cm)
W: 5.9" (15cm)
D: 5.9" (15cm) (Standard desktop orientation)
Packaged Dimensions (H x W x D)
L: 8.5" (21.6cm)
W: 5.6" (14.2cm)
H: 10.7" (27.2cm)
Weight
(System weight only) 1.25kg ，(Packaged weight) 2.5kg
Remark
3 Years HP Warranty
