55VW25E
55” LCD Video Wall Display
Hisense’s new VW25E Series LCD Video Wall provide users an almost seamless visual experience thanks to our extremely narrow bezel that let your content vividly stands out. It is powerfully designed for a host of everyday scenarios - from monitoring centers to conference rooms, from command centers to shopping malls, and so much more. Hisense LCD Video Wall captivate you with vivid visuals, leveraging our superb technologies such as picture enhancement technology, wide viewing angles, and anti-glare etc. With VisionInfo built-in, VW25E Series brings together content management and remote device management at anytime from anywhere.
Advanced 4K Chip
Powered by an advanced 4K chip, VW25E series are capable of decoding 4K 60hz video. The realism and visibility of the image is greatly improved and the visual effects are more subtle and vivid.
Android 11
Smart OS allows you to install third party apps as per your needs, and update your video walls through OTA, which make your video walls smart, effective and user friendly.
Ultra-Narrow Bezel Design
An ultra-narrow 2.9mm bezel-to-bezel width (1.8mm(T/L, 1.1mm (B/R) ) offers a seamless picture to provide an eye-catching visual experience, which allows the display to fit into any business environment.
Landscape and Portrait Display
VW25E offers great convenience by providing consistent visual quality both in landscape and portrait modes, which help to elevate your business.
Anti-Glare 25% Haze
25% haze panels help reducing reflections without adversely affecting the image quality, making sure the critical information are always visible and it can also improve the perceived contrast ratio of the display.
Unlimited Daisy Chain
Hisense LCD video walls support daisy chain without quantity limit. No need for video splitters, you can use common HDMI cables to connect the video walls together effortlessly.
Display
Backlight Type: DLED
Type: ADS
Size: 55”
Resolution: 1920 x 1080
Refresh Rate: 60Hz
Colour Depth: 16.7M(8 Bits)
Brightness(Typ.): 500 nits
Contrast Ratio(Typ.): 1200:1
Response Time(Typ.): 8ms
Viewing Angle(Min.): 178°/178°
Colour Gamut(Typ.): 72% NTSC
Haze: 25%
Orientation: Landscape & Portrait
MTBF: 50,000 hrs
Operation Hours: 24 x 7
System
Operating System: Android 11
Processor CPU: ARM Cortex-A55 Quad Core
Processor GPU: Mali-G52
Memory: 2G DDR4
Storage: 16G EMMC
Language: Simplified Chinese, English, French, German, Polish, Spanish, Russian, Italian, Finnish, Norwegian, Swedish, Hebrew, Arabic, Thai, Malay, Indonesian, Catalan
Environment
Operating Temperature: 0°C~40°C
Operating Humidity: 10%~80%, non-condensing
Connectivity
Input:
HDMI(2.0) x3
USB2.0(A) x 1
RS232(RJ45) x 1
LAN(RJ45) x1
IR(2.5mm) x1
Output:
HDMI x1
Audio(3.5mm) x1
RS232(RJ45) x1
Speaker (Built-in): w/o
Power
Power Supply: AC 100~240V, 50/60Hz
Power Consumption(Typ.): 145W
Power Consumption(Max.): 200W
Standby Consumption: less than 0.5W (Standby Mode)
Physical
Bezel Colour: Black

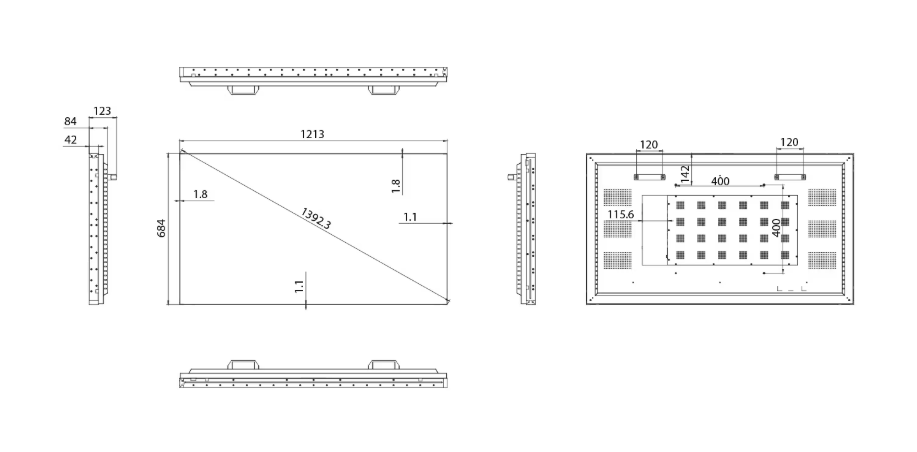

Set Dimension (W x H x D): 1213 x 684 x 84mm (Not including Handle)
Packing Dimension (W x H x D): 1352 x 844 x 234mm
Bezel Width (T/L/R/B): 1.8 / 1.8 / 1.1 / 1.1mm
Net Weight: 27kg
Gross Weight: 36.2kg
VESA Mount: 400 x 400mm, 4-M6 Screw
Accessories:
Quick Setup Guide / Power Cord / Remote Control & Batteries(AAA) x2 / RS232 Converter Cable / IR Cable
Certification
Standard: CB / CE / UKCA / ERP / South Africa Energy Efficiency
EMC: Class A
Safety: 62368-1
