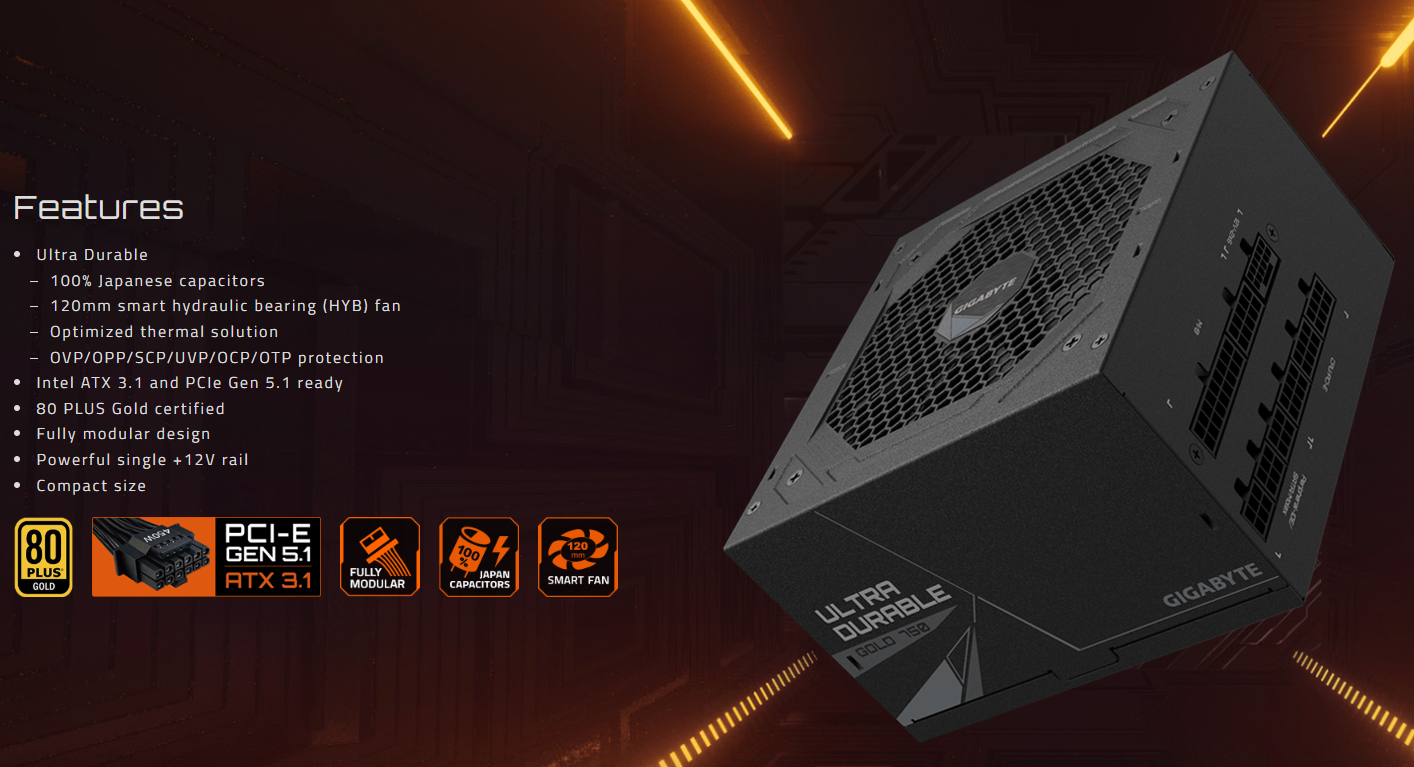

GIGABYTE UD750GM PG5 V2-750W 80 Plus Gold Certified - PCIe5.1 Ready - ATX3.1 - Fully Modular Power Supply

Model: GP-UD750GM PG5 V2

Type: Intel Form Factor ATX 12V v3.1

PFC: Active PFC (>0.9 typical)

Input Voltage: 100-240 Vac (full range)

Input Current: 15-6.5A

Input Frequency: 60-50 Hz

Output Capacity: 750W

Dimensions: 150 x 140 x 86mm

Fan Type: 120mm Hydraulic Bearing(HYB) Fan

80 PLUS: Gold

Efficiency: 90% at typical load

MTBF: >100,000 hours

Protections: OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal: 100-150ms

Hold Up Time: >16ms

Cable Type: Embossed, All black

Connectors:

• ATX/MB 20+4 Pin x 1 : 610mm*1
• CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1
• PCI-e 6+2 Pin x 4 : 600mm+150mm*2
• PCI-e 12+4 Pin x 1:700mm*1
• SATA x 8 : 600mm+150mm+150mm+150mm*2
• 4 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1
