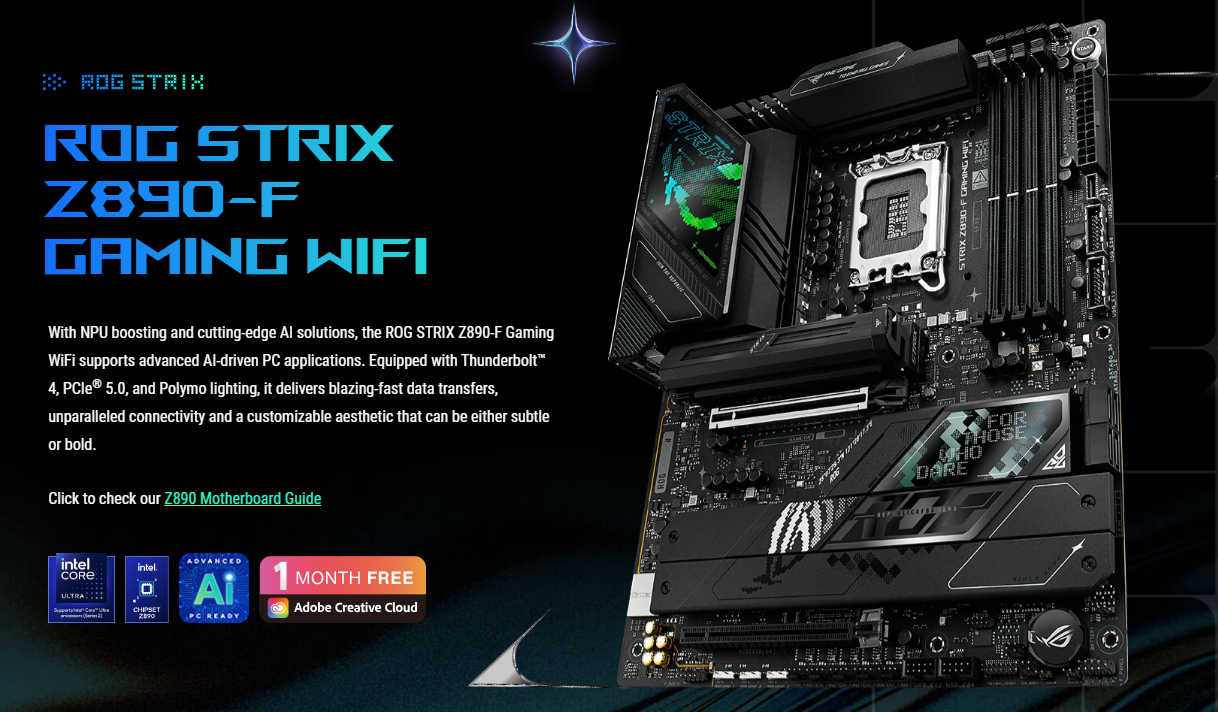

ASUS ROG Strix Z890-F Gaming WiFi ATX Motherboard, 16+1+2+2 power stages, DDR5 slots, PCIe 5.0 w/full support for next-gen GPUs, five M.2 slots, WiFi 7, AI Overclocking, AI Networking II

• Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel LGA 1851 Socket: Ready for Intel Core Ultra processors (Series 2)
• Exclusive AI Technologies: NPU Boost, ASUS AI Advisor, ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II
• Exclusive Memory Technologies: DIMM Fit, DIMM Flex and AEMP III to simplify setup and improve performance
• Robust Power Solution: 16(110A)+1(90A)+2(90A)+2(80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
• Optimized Thermal Design: Massive heatsinks with integrated I/O cover, High-conductivity Thermal pads, and connected with an L-shaped heatpipe
• Latest M.2 Support: One PCIe 5.0 M.2 slot and four PCIe 4.0 M.2 slots, all with substantial cooling solutions
• Abundant Connectivity: Dual Thunderbolt 4 USB Type-C ports, USB 10Gbps Type-C rear I/O port with up to 30-watt Power Delivery fast charging plus USB Wattage Watcher, five additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot with full support for next-gen graphics card, HDMI 2.1 and DisplayPort 1.4
• High-Performance Networking: On-board Intel Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Intel 2.5 Gb Ethernet
• DIY-Friendly Design: PCIe Slot Q-Release Slim, new M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, BIOS Q-Dashboard, Q-LED, Start button, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield

CPU Compatibility

• Supports Intel® Core™ Ultra Processors (Series 2)

• LGA1851 socket with Intel® Turbo Boost 2.0 and Max 3.0 support

Chipset

• Intel® Z890

Memory

• 4 x DIMM slots, max. 192GB, DDR5 (up to 8600+MT/s OC)

• Supports Dual Channel, Intel® XMP, and ASUS AEMP III

Graphics Output

• 1 x DisplayPort 1.4 (up to 8K@60Hz)

• 1 x HDMI 2.1 (4K@60Hz)

• 2 x Intel® Thunderbolt™ 4 with DisplayPort and Thunderbolt™ video outputs

Expansion Slots

• 1 x PCIe 5.0 x16 (supports x16/x8/x4 modes)

• 1 x PCIe 4.0 x16 (supports x4 mode)

Storage

• 5 x M.2 slots (PCIe 5.0 & 4.0 support)

• 4 x SATA 6Gb/s ports

• Supports Intel® Rapid Storage Technology RAID configurations

Networking

• 1 x Intel® 2.5Gb Ethernet

• Wi-Fi 7 (2x2, up to 5.8Gbps, Windows 11 24H2 or later required for full support)

• Bluetooth® v5.4

USB Ports

• Rear: 14 ports including 2 x Thunderbolt™ 4, 6 x USB 10Gbps, and a 30W PD Fast-Charge

• Front: 9 ports including 1 x USB 20Gbps and headers for additional ports

Audio

• ROG SupremeFX 7.1 Surround Sound, ALC4080 codec with premium audio features, supporting up to 32-bit/384kHz playback

Cooling & Power

• 1 x 24-pin Main Power, 2 x 8-pin CPU Power connectors

• Multiple 4-pin fan headers, AIO pump support, and VRM/M.2 heatsinks

Special Features

• ASUS Q-Design with M.2 Q-Latch, Q-DIMM, Q-Code

• ASUS EZ DIY with BIOS FlashBack™, Clear CMOS, and pre-mounted I/O shield

• Aura Sync Gen2 headers

Included Accessories

• 2 x SATA cables, ASUS Wi-Fi Q-Antenna, thermal pad for M.2, ROG key chain, cable ties, stickers, documentation

Software

• ROG CPU-Z, Dolby Atmos, Armoury Crate, Fan Xpert 4, GameFirst, Norton 360 (60-day trial), WinRAR (40-day trial)

Form Factor

• ATX, 12 in x 9.6 in (30.5 cm x 24.4 cm)

OS Compatibility

• Windows® 11 (22H2 & later)
