ACER S1386WH DLP Projector

Acer’s Education Series projectors portray clear, large images from either a distance, or when positioned conveniently close to the projection screen. This makes them ideal for use in education facilities or any smaller space. Their high resolution makes for clear and detailed big screen images, while color enhancement features deliver vivid hues.

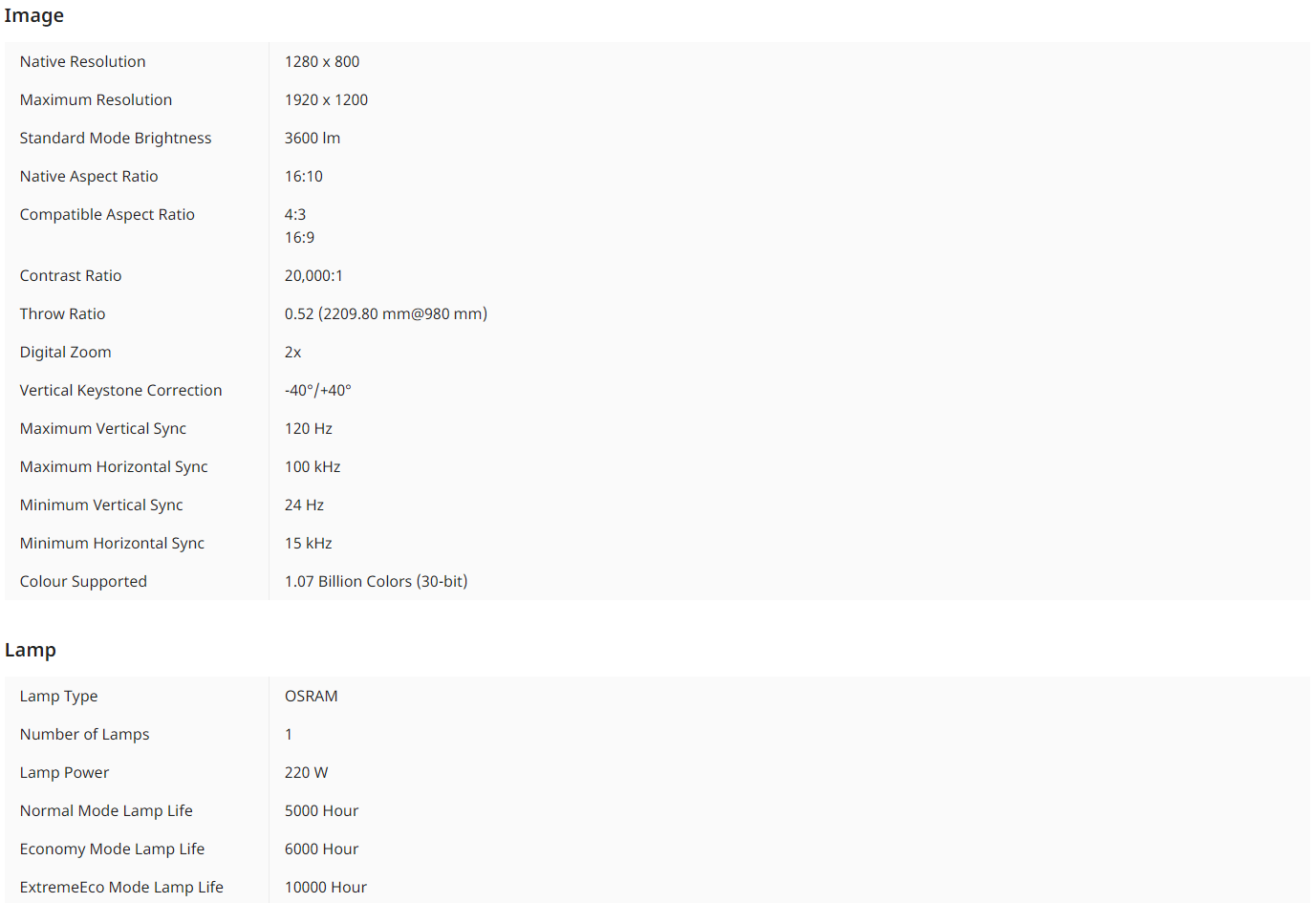

• Native Resolution 1280 x 800
• Maximum Resolution 1920 x 1200
• Standard Mode Brightness 3600 lm
• Native Aspect Ratio 16:10
• Compatible Aspect Ratio 16:9 - 4:3
• Contrast Ratio 20,000:1
• Throw Ratio 0.52 (2209.80 mm@980 mm)
• Digital Zoom 2x
• Vertical Keystone Correction -40°/+40°
• Maximum Vertical Sync 120 Hz
• Maximum Horizontal Sync 100 kHz
• Minimum Vertical Sync 24 Hz
• Minimum Horizontal Sync 15 kHz
• Colour Supported 1.07 Billion Colors (30-bit)

Projection Lens

• Maximum Lens Aperture f/2.80
• Maximum Focal Length 7.51 mm
• Minimum Diagonal Image Size 914.40 mm
• Maximum Diagonal Image Size 7.62 m (300")
• Minimum Projection Distance 400 mm
• Maximum Projection Distance 3.40 m
• Optical Zoom 1x

Lamp

• Lamp Type OSRAM
• Number of Lamps 1
• Lamp Power 220 W
• Normal Mode Lamp Life 5000 Hour
• Economy Mode Lamp Life 6000 Hour
• ExtremeEco Mode Lamp Life 10000 Hour

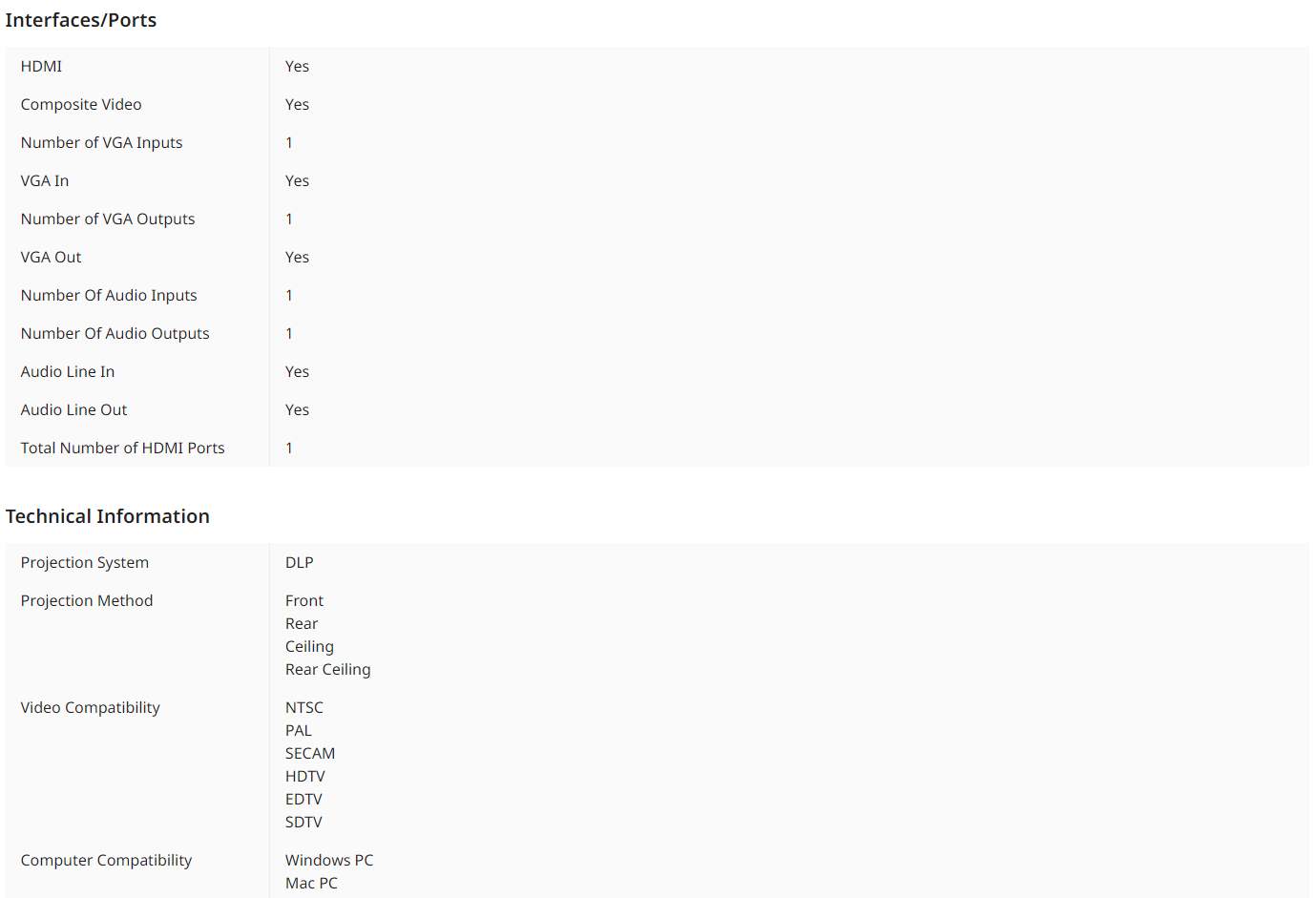

Interfaces/Ports

• HDMI Yes
• Composite Video Yes
• Number of VGA Inputs 1
• VGA In Yes
• Number of VGA Outputs 1
• VGA Out Yes
• Number Of Audio Inputs 1
• Number Of Audio Outputs 1
• Audio line In Yes
• Audio Line Out Yes
• Total Number of HDMI Ports 1

Technical Information

• Projection System DLP
• Projection Method Ceiling, Front Rea,r Rear Ceiling
• Video Compatibility (EDTV, HDTV, NTSC, PAL, SDTV, SECAM)
• Computer Compatibility: Mac PC, Windows PC

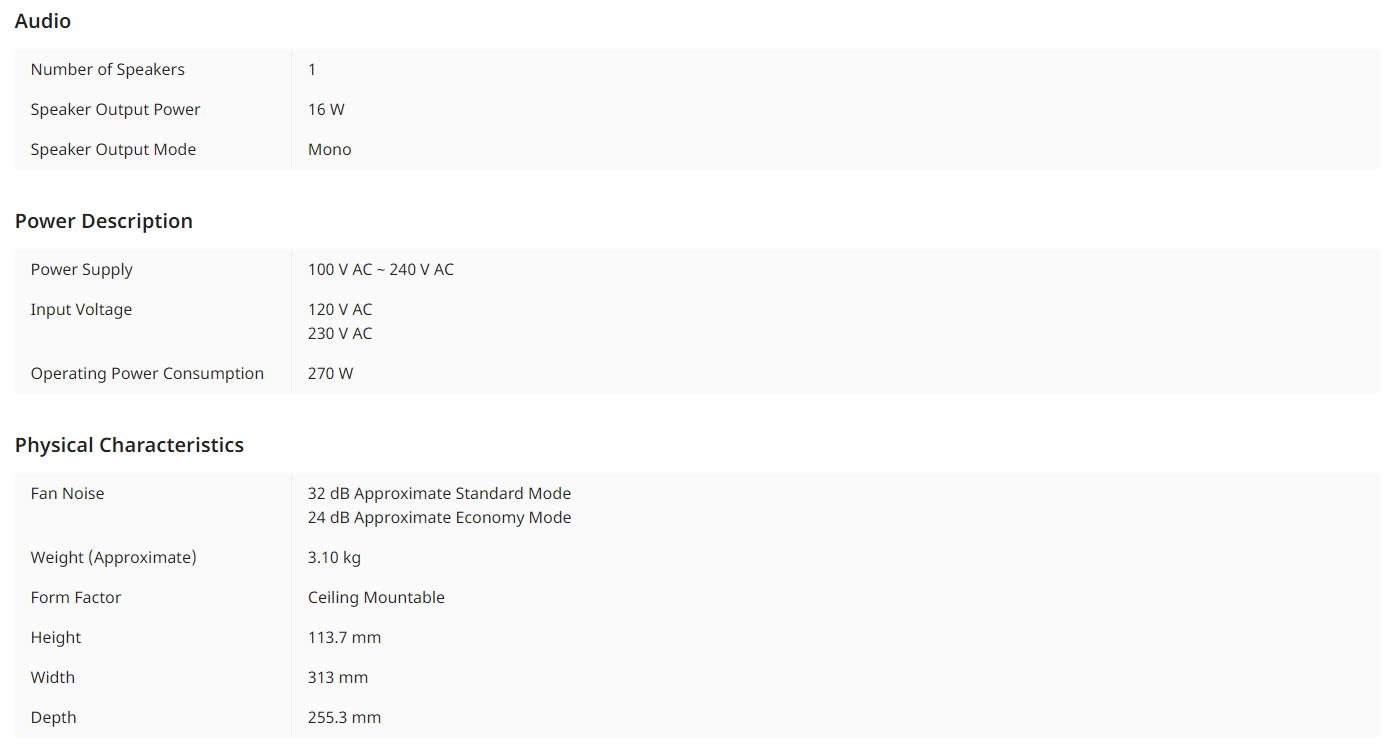

Audio

• Number of Speakers 1
• Speaker Output Power 16 W
• Speaker Output Mode Mono

Power Description

• Power Supply 100 V AC ~ 240 V AC
• Input Voltage 120 V AC, 230 V AC
• Operating Power Consumption 270 W

Physical Characteristics

• Fan Noise 24 dB Approximate Economy Mode  / 32 dB Approximate Standard Mode
• Weight (Approximate) 3.10 kg
• Form Factor Ceiling Mountable
• Height 113.7 mm
• Width 313 mm
• Depth 255.3 mm

Miscellaneous

Optional Accessories

• 3D Glasses (MC.JFZ11.00B)
• Lamp (MC.JQH11.001)
• WirelessProjection-Kit (UWA3) (MC.JG811.00E)
• WirelessCAST (MWA3) (MC.JKY11.007)
• Ceiling Mount (MC.JLC11.003)
• WirelessHD-Kit (MC.JKY11.009)

Warranty

• 2 YEARS (Lamp 1yr or 1K Hours)
